FarmQA Nitro-Bars are the most cost effective stream bars on the market to make in-season liquid Nitrogen applications even and accurate. By doing so the risk of nitrogen loss to volatility, burning crops, and over applying is reduced.

FarmQA Nitro-Bars

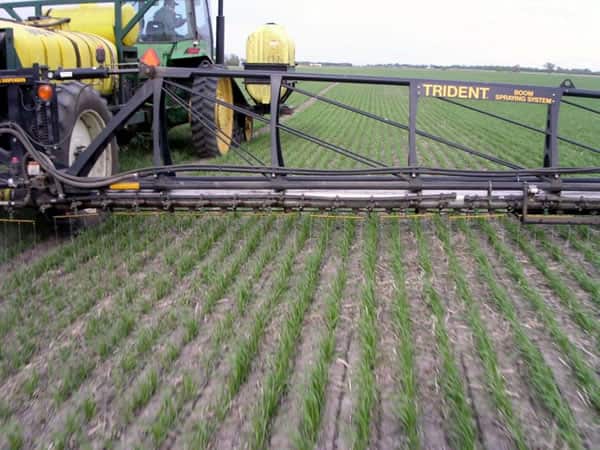

Convert your sprayer into a nitrogen applicator with Nitro-Bars

By adapting your sprayer with FarmQA Nitro-Bars, made by Amity Technologies, you have the control of applying nitrogen at the optimum time for increased yields.

When used with the Air Tram Tramline System, nitrogen can be applied with unparalleled accuracy. Quickly change nitrogen application rates using the color-coded orifice adapters. Shop Now Starting at $8.50

Highly Accurate

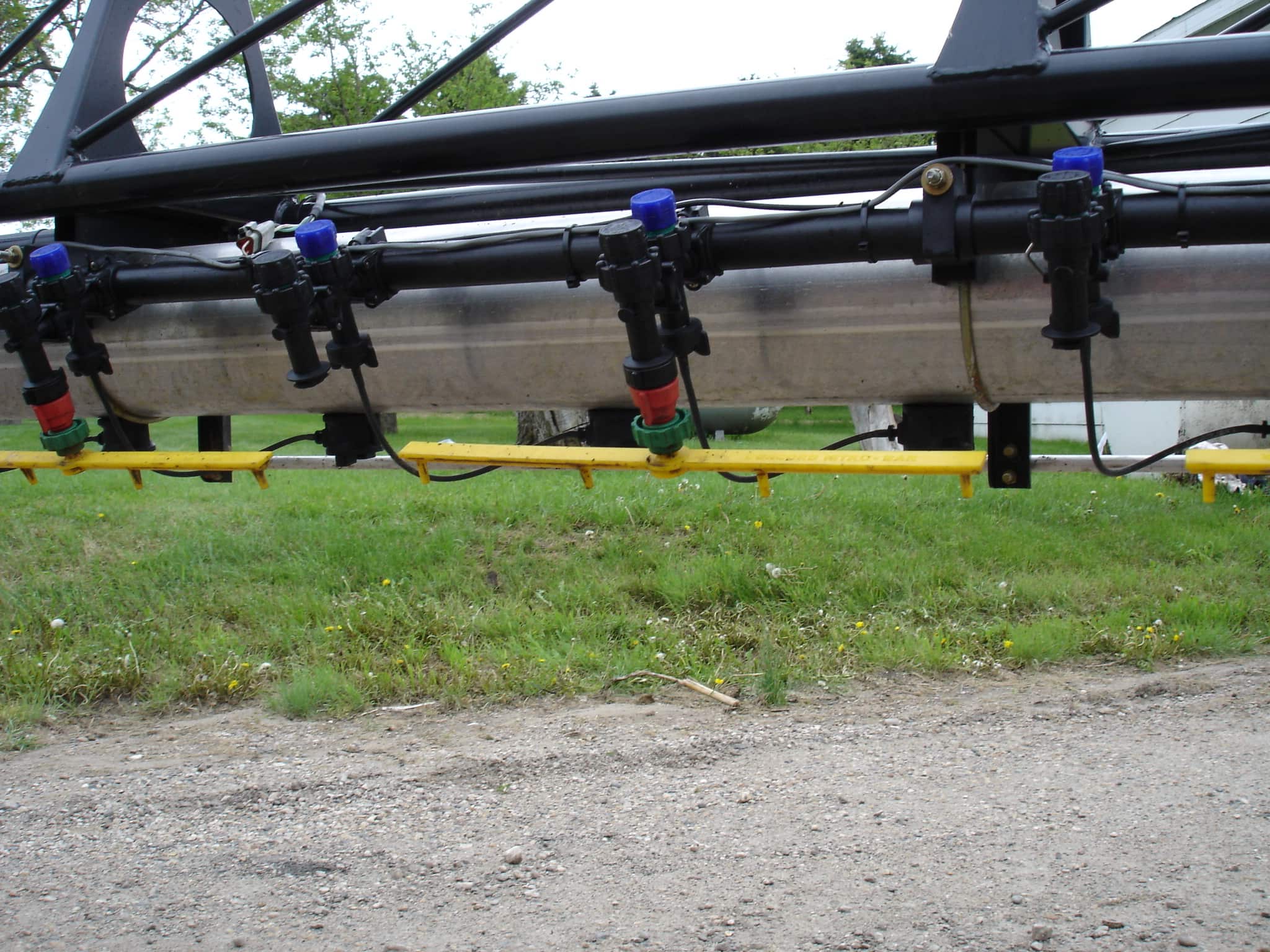

The simple, effective design of the Nitro-Bar feeds each of the four ports independently ensuring equal flow and a high standard of application accuracy.

Unaffected by Boom Height or Movement

Nitro-Bars produce a stream of liquid from each port, with no overlapping pattern. This means that application accuracy is extremely high and remains unaffected by boom height or movement. Applications of nitrogen can therefore be carried throughout the growing season.

Reduces the Risk of Leaf Burn

Fertilizer contact with the crop is minimized by the configuration of the Nitro-Bar and by the large droplets produced at the leaf surface. This enables the fertilizer to roll off the foliage quickly, virtually eliminating the risk of leaf burn.

Easy and Quick to Assemble

Nitro-Bars fit the standard 20 inch (51 cm) nozzle spacing on sprayers. Using the universal teejet or the Hardi adapters. The Nitro-Bars can be fitted to your sprayer in minutes.

Adaptable for all Application Rates

Color coded quick fit orifice adapters enable the flow rate to be easily adjusted to cover the full range of nitrogen applications. There are five different orifice/adapters available to encompass flow rates from 5 to 80 Gallons (20 to 300 Liters) per acre.

For information on what adapter is best for your sprayer see our Rate Chart.

Application Method Comparison

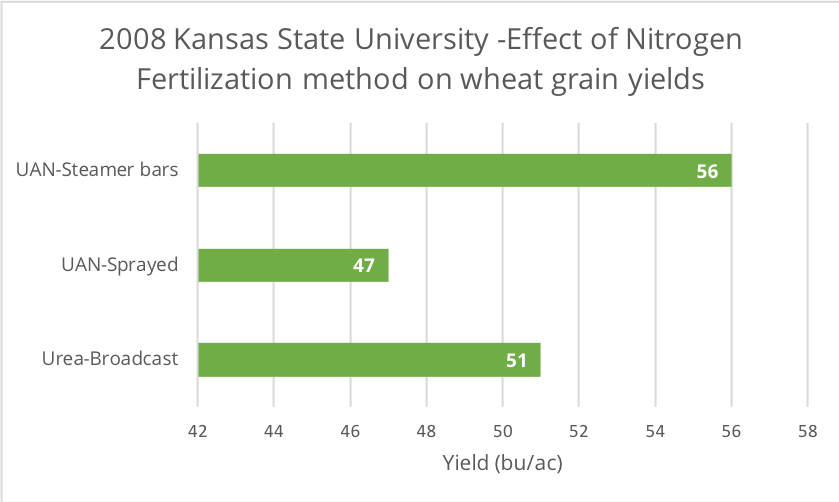

Kansas State University in 2008 researched the most effective method for applying liquid fertilizer to maximize wheat yield and protein. They found a 9 bushel/acre yield increase using stream bars versus the same product being applied with flat fan nozzles.

The return on investment is clear. In this example if wheat was $4.50 per bushel, the grower would have had a $40.50 per acre difference in profit with the same input cost by using Nitro-Bars.

To order, visit the FarmQA online store, call +1.701.237.2167, or e-mail sales@farmqa.com
