FarmQA, Farm with control.

Soil Testing

Automated hydraulic soil sampler probes

Reduce your fertilizer costs now by measuring and applying only what your fields need.

FarmQA offers a wide range of automated hydraulic soil sampling probes and augers for agriculture and environmental soil test needs. These are built by Amity Technologies and are the quality you expect from Amity. Reduce time in the field at the end of the season by leveraging one of these robust soil test units.

Image of a 2024 soil sampler mounted on an ATV

ATV soil sampler

ATV mounted automated hydraulic soil samplers automate the collection of up to 20 samples at a time.

The ATV mounted samplers have a smaller, lighter platform, with a specially designed, carbide-tipped auger allows sampling of all types of soil, including frozen ground. The extremely fast cycle time of 10-22 seconds lets you collect more soil samples in less time to cover your fields faster.

  • Automated collection of up to 20 samples
  • 3/4" diameter auger
  • Optional short sample attachment (2024)
  • Special designed carbide tipped auger
  • Low profile
  • Push button controls with cord
  • Sample all types of soil including frozen ground
  • Optional power pack cover available
Sample depth0-24 inches
Hydraulic motors2
Power pack6.5 hp Honda hydraulic
Cycle time10-22 seconds
Approx. weight210 lbs
Sample depth12" (2012), 24" (2024) or 36" (2036)
Image of a 2024 soil sampler mounted on an ATV

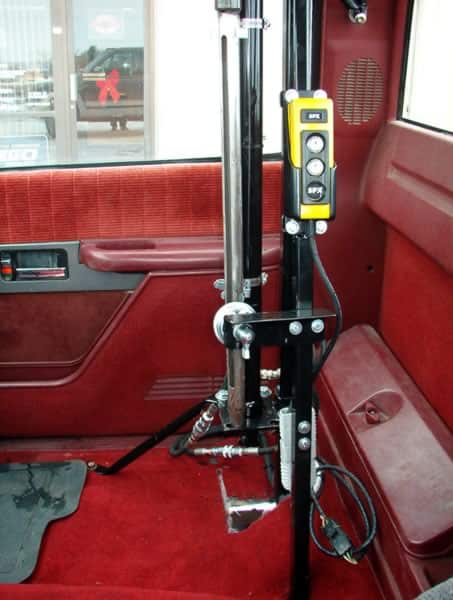

In cab soil sampler

For truck mounted solutions, our in-cab hydraulic probe provides quality with unparalleled convenience.

The model 2400 in-cab soil sampler, samples through frozen ground, and its fast cycle time allows for more samples in less time. You can also do everything from the cab of your truck.

  • Direct push soil sampler
  • Manual collection of soil samples
  • Quick attach probe
  • Electric over hydraulic power unit
  • Push button controls with cord
  • Dry tip and wet tip options
  • Samples in frozen ground up to 24"
Down force6,000 lbs
Cylinder1.75" bore x 30" stroke
Cycle time11-17 seconds
Approx. weight210 lbs
Image of a 2024 soil sampler mounted on an ATV

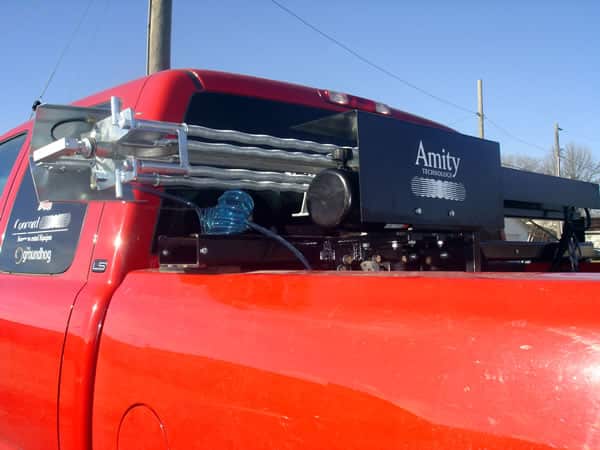

Truck mounted soil sampler

The model 2450 truck mounted automated hydraulic soil sampler is engineered to automatically collect up to 25 samples

The push button controls, with a 10-foot cord, let you collect samples without having to get out of the truck cab.

  • Automated collection of up to 25 samples
  • Easily adjusts to shipping position
  • Electric over hydraulic power unit
  • Push button remote control with cord
  • Adjustable height variations for pickup models
  • Stainless steel sampling parts
  • Optional air-blast tip cleaner and dual zone collection system
Sample depth0-24 inches
Down force3,500 lbs
Cylinder1.5"
Cycle time10-12 seconds
Approx. weight225 lbs

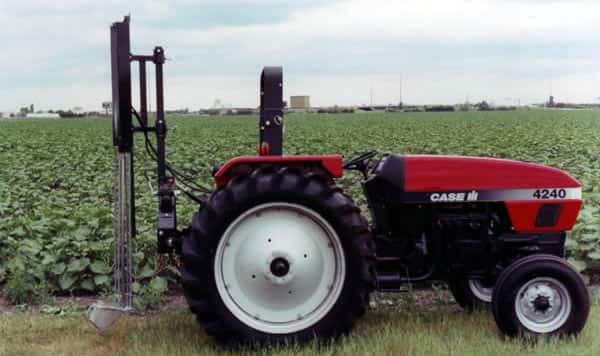

Image of a 2403 soil sampler mounted on an tractor

Three-point Hitch

When deeper samples are needed to 48", the Three-point Hitch Soil Sampler is the best option.

With three depths available, these samplers can be mounted onto any category 1 or 2 three-point hitch, using the tractor's hydraulics for operation.

  • Mounted on any category 1 or 2 hitch
  • Fast cycle time, 12-20 seconds
  • Sample depth of 0 to 48 inches
  • Utilizes the hydraulics from the tractor
Sample depth0-48 inches
Hydraulic motors0
Cycle time12-20 seconds (depending on tractor)
Approx. weight185 lbs

To order, visit the FarmQA online store, call +1.701.237.2167, or e-mail sales@farmqa.com
